The CamClose is Camfil's new generation pleated panel air filter designed to extend the service life of gas turbine final filters. By adding the CamClose pre-filter, overall filtration efficiency is further improved.
The CamClose has a user-friendly design, robust construction, and best-in-class water handling properties. These features make it an excellent pre-filter for most turbomachinery and gas turbine applications. It is especially suitable for humid conditions such as tropical and coastal installations.
The CamClose pre-filter has been engineered to improve performance and allows for hassle-free operations, increased performance and offers excellent protection.
The CamClose panel air filter is available in three efficiency classes:
Pre-filters are used as a first line of defense against the elements. As such, they have an important impact on the overall performance of a filtration system. Since gas turbines require a higher level of protection compared to other applications, the right pre-filter becomes even more important.
The right pre-filter can extend the life of your final filters and also improve your overall filtration efficiency. This allows you to remain online for a longer periods of time and improves your availability and reliability.

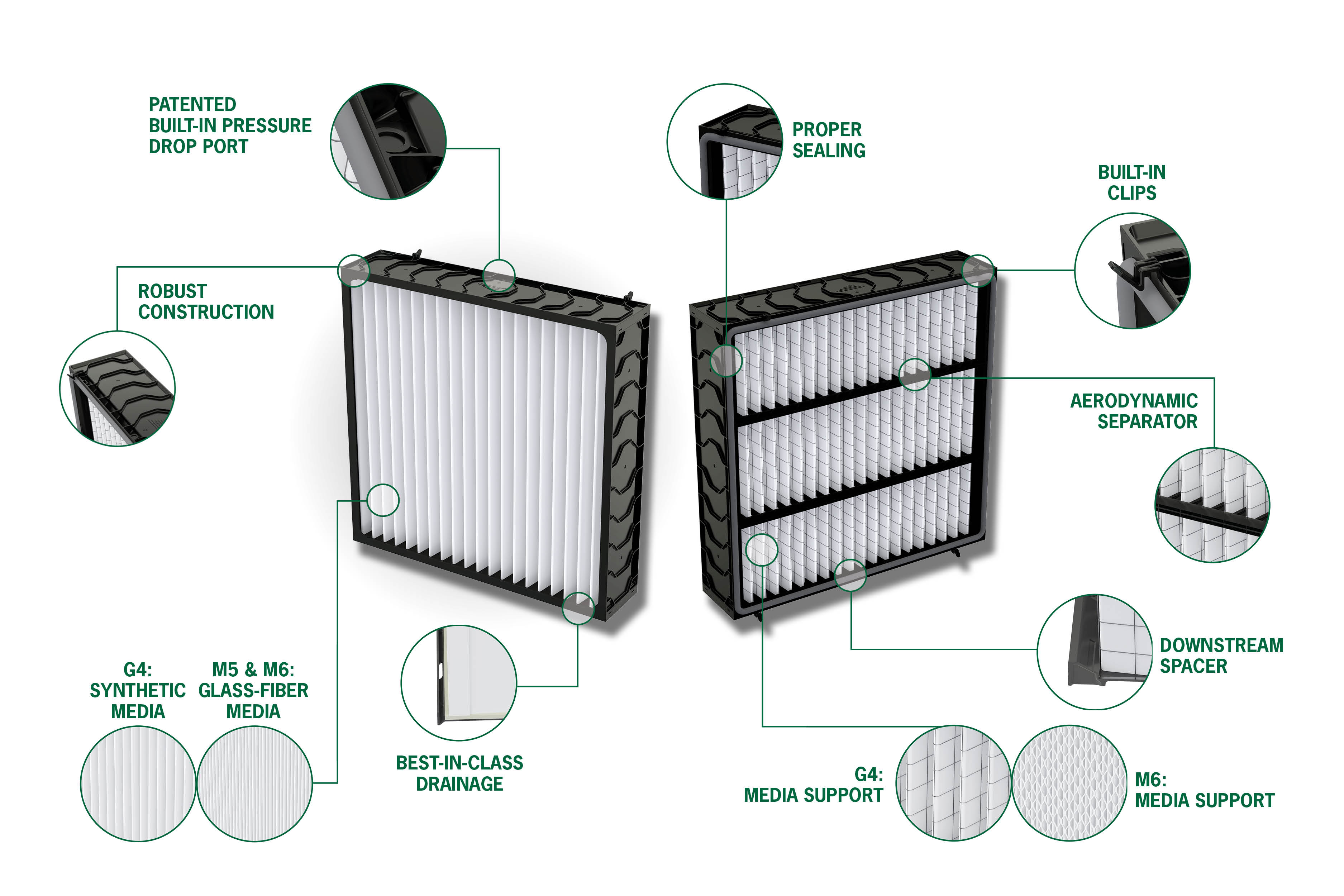

The CamClose filter has built-in clips that enable quick and efficient close-coupling of the pre-filter to the final filter. It is especially useful for installations that do not have separate pre-filter banks or do not have the hardware to fix a panel filter with their final filter.
The durable built-in clips, combined with the filter's high burst strength and robust construction, make the CamClose also useful in high velocity applications, such as offshore.

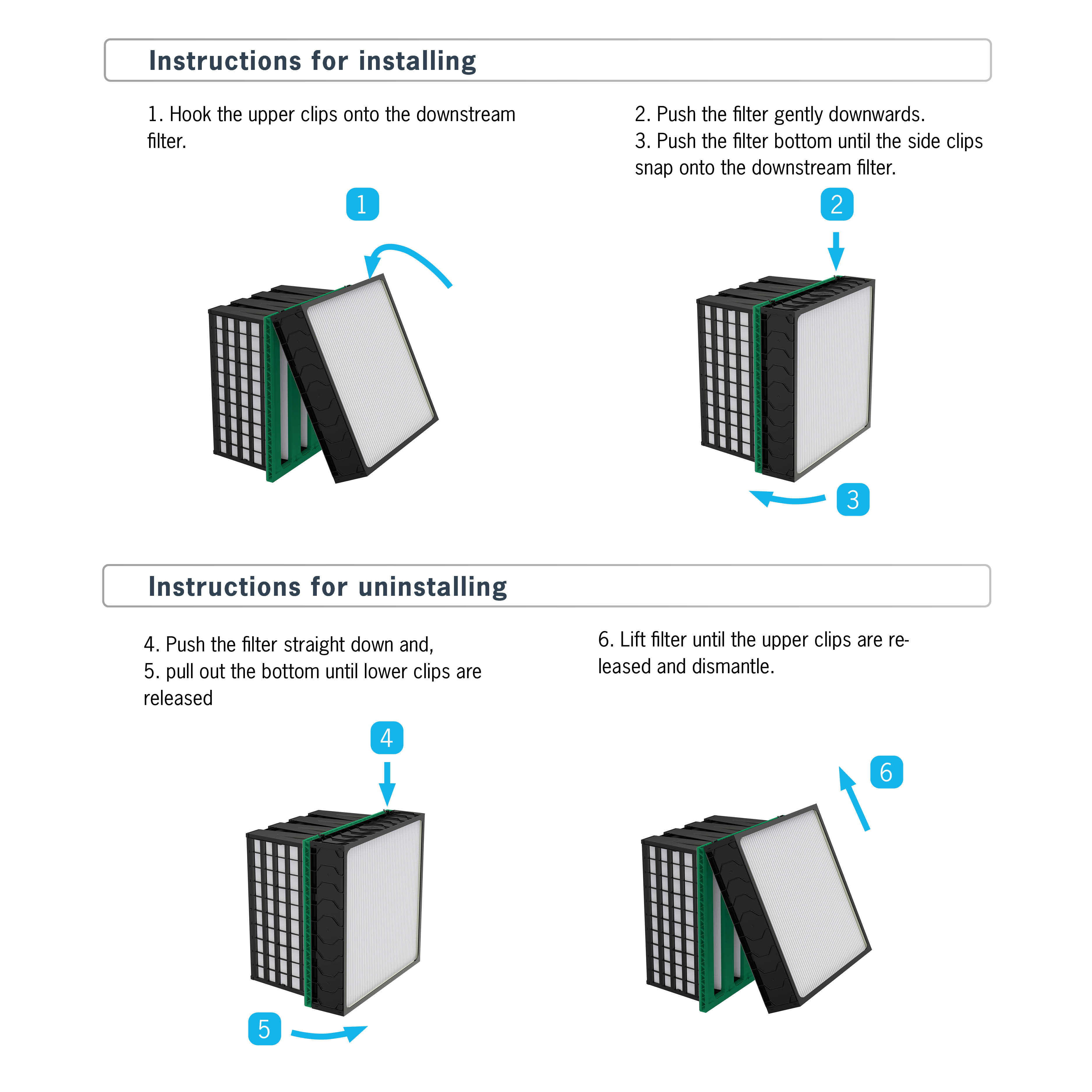

This easy 4-step guide shows how you can install your pre-filter to your final filter in less than 2 minutes!
Measuring pressure drop across air filters is important to optimize filter changeouts. Normally, gas turbine operators that have close-coupled filter solutions would drill a hole into the pre-filter, or add a spacer frame with a hole between the two filters to help with this measurement. These methods are cumbersome and require additional tools.
You can finally put away your drill!
To simplify this process for close-coupled installations, the CamClose has been designed with a new and patented pressure drop port. This enables the operator to easily measure pressure drop, without the need for many tools.
This video shows how you can efficiently measure downstream pressure drop with the CamClose filter using only a few tools.
The CamGT filters are the ultimate high performance gas turbine filters and are proven to be the toughest filters on the market. When combined with the CamClose pre-filter, the life of the CamGT is further improved, leading to even fewer maintenance requirements for final filter replacement. The CamClose pre-filter can be fitted perfectly onto any of CamGT filters in its line.
