CamCube AS

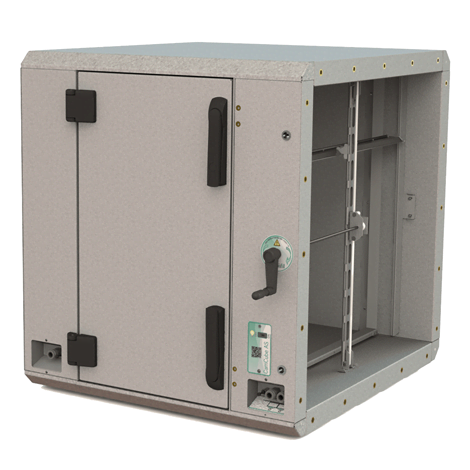

HEPA filter housing with an innovative scanning system to perform integrity tests. Modular design for high airflow applications, easily installed with built-in thermal insulation.

  • For high airflow HEPA filters (box type), full size 610x610x292 mm
  • Unique non-intrusive scanning system
  • Advanced patented probe for reliable scanning
  • Space-saving installation
  • Built-in inspection lens and light
  • ICON24 magicad

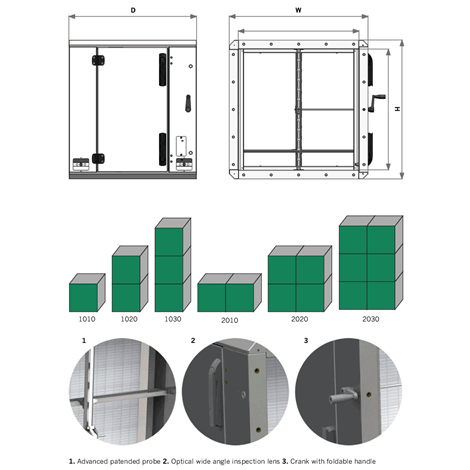

Item Type Width (mm) Height (mm) Depth (mm)
CamCube AS 1010 707 707 650
CamCube AS 1020 707 1322 650
CamCube AS 1030 707 1937 650
CamCube AS 2010 1322 707 650
CamCube AS 2020 1322 1322 650
CamCube AS 2030 1322 1937 650

Specifications

Application
Supply air for cleanrooms and other controlled environments with high clean air requirements.
Max temperature (°C)
90°C
Material
Aluzinc (except handles, hinges and accessories)
Comment
Filter housing constructed in aluzinc sheet metal, for box-type HEPA filters in full size 610x610x292 mm.
Built-in thermal insulation for condensation control.
The filter housing is equipped with a flange connection, measuring ports for pressure drop reading and a leakage test of the installed filter.
Inspection of scanning system operation through built-in inspection lenses and LED lights.
Filter clamping system adapted to 292 mm filter depth, and operated with 5 mm Allen key.
Tightness and leakage tested acc. to applicable standards.
