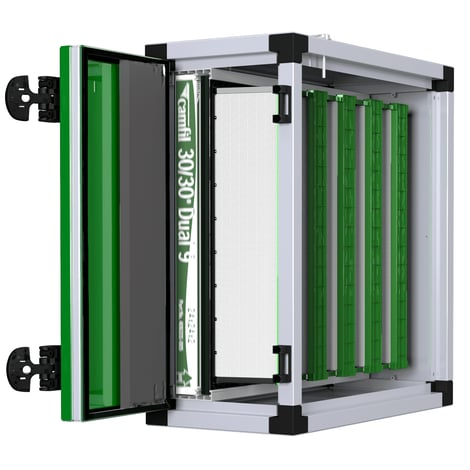

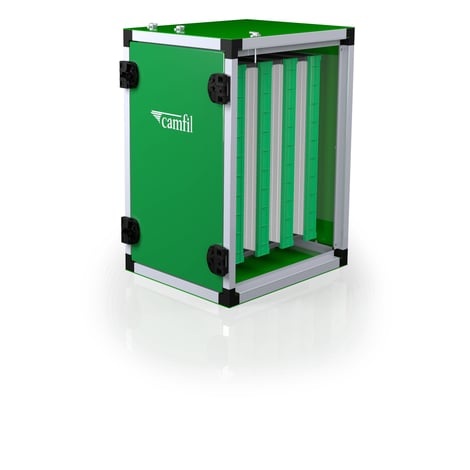

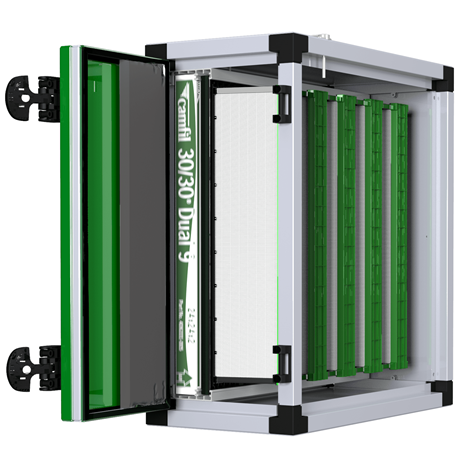

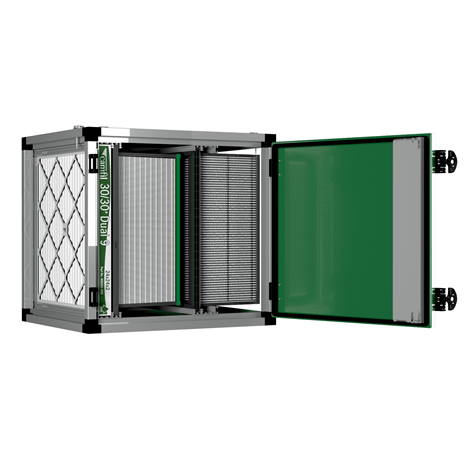

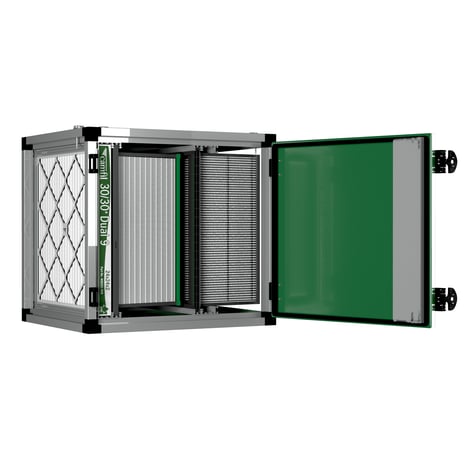

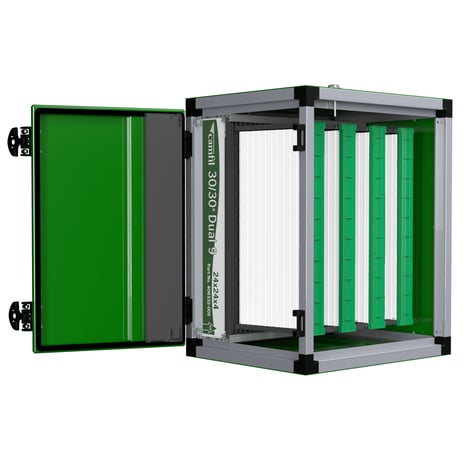

GlidePack MultiTrack

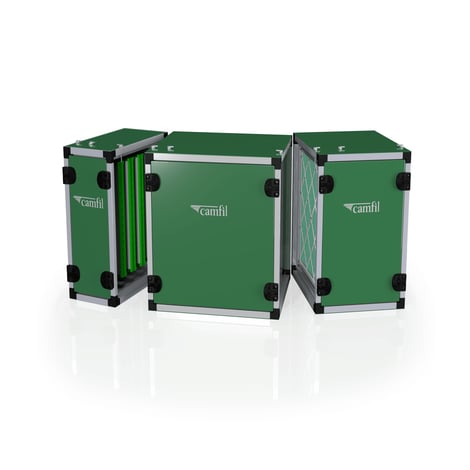

The Camfil GlidePack® MultiTrack is an air filter housing available in three different sizes and capable of holding various pre and final filter combinations.

  • Available in 13", 21" and 32" depths.
  • Replaceable fin seal polypropylene final filter gasketing to ensure a secure filter-to-track seal of less than 1% across the filter sealing surface at 3.0" w.g.
  • 16-gauge aluminum double wall insulated construction with tubular framing perimeter to mate to existing HVAC equipment.
  • Double wall insulated dual swing doors for filter service can be operated either left hand or right hand swing.
  • The doors can also be completely removed for interference-free filter service.
  • Pressure boundary integrity of housing limits the ambient leakage to less than 0.25% of rated flow at 3" w.g. and less than 0.5% of rated flow at 8" w.g.

Video

Specifications

Material
Aluminium
Installation options
Accommodates multiple filter combinations including two and four inch prefilters, six, twelve, fifteen, twenty two and thirty inch headered final filters.
Comment
Insulation value of R6 per inch - meets ASTM E-84 and ASHRAE 90.1
Max Temperature (°F)
220
