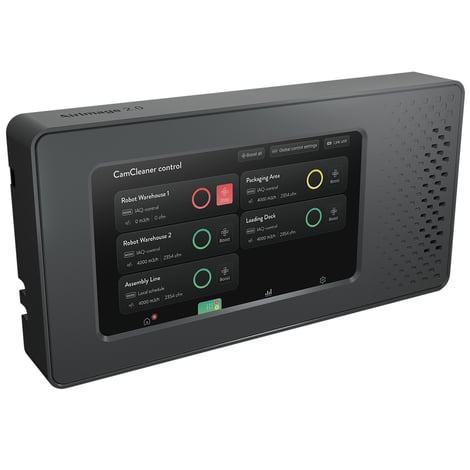

AirImage 2.0

AirImage 2.0 is an intelligent indoor air quality (IAQ) monitoring and control system. Paired with CamCleaner CC X-Series enhances IAQ and saves energy. The user-friendly interface provides easy access to real-time and historical data reports.

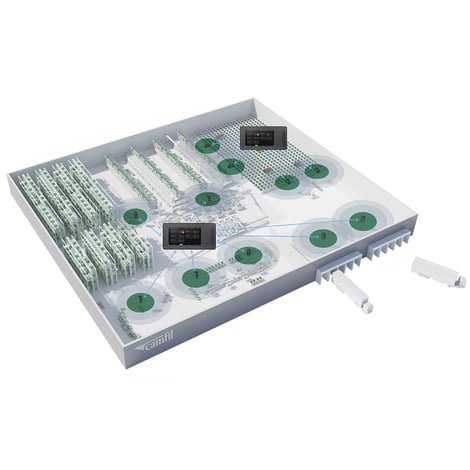

  • Remote controls the entire CamCleaner portfolio with one device
  • Real-time air quality monitoring of PM1, PM2.5, PM10, temperature, humidity and CO₂
  • Energy savings by adjusting fan speed on CamCleaners to achieve the desired IAQ
  • Optimise filter changes by monitoring filter pressure drop
  • Access to historical data monitoring
  • Integrated solution compatible with Modbus or BACnet

Video

Specifications

Application
Connectivity to Camfil Industrial Air Cleaner - CamCleaner.
Comment

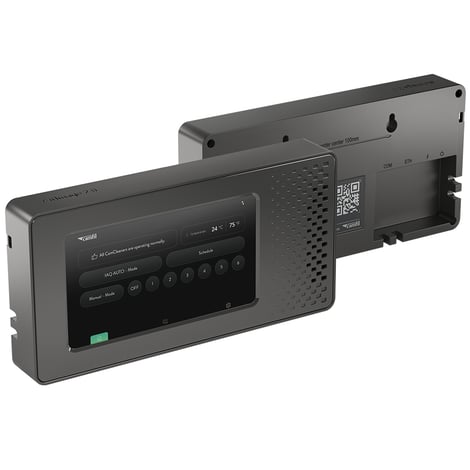

Display: 7" LED touchscreen
Dimensions: 245 x 124 x 32 mm (9.65 x 4.88 x 1.26 in)
Weight: 950 g (2.1 lbs)
Power supply: USB-C, 5V, 10W, min 1.5A
System Operation Temperature: 0 – 40 °C (32 °F - 104 °F)

Sensor specification particulate matter:
Mass concentration precision: ±10%
Mass concentration range: 0–1000 μg/m3
Particle size range: PM1.0, PM2.5, PM4*, PM10* (*calculated by algorithm)

Sensor specification temperature:
Typ. temperature accuracy: 0.8 °C (33.4 °F)
Operating temperature range: -10 – 60 °C (14 °F – 140 °F)

Sensor specification CO₂:
Measurement range: 400–2000 ppm
Accuracy baseline: ±50 ppm

Sensor specification humidity:
Typ. Relative humidity accuracy: 6% RH
Mass concentration range: 0–95% RH

Calibration certificate:
Factory calibrated
Lifetime: > 10 years

Communication:
External: 4G to send data to the Cloud
Internal: ETH (Modbus or BacNet)
Service: COM – serial port with an RJ45 connector
Wifi mesh range: min. 50 m (16.4 ft) communication with CamCleaner

Settings:
Languages: English, Chinese, French, German, Italian, Portuguese, Spanish, Swedish, Finnish, Danish, Norwegian, Dutch
Units: Metric & imperial
Alarms
Other: Screen saver, brightness, historical data

Plug Type:
EU
USA
UK
Australia
Japan
