ProCarb HDB-C

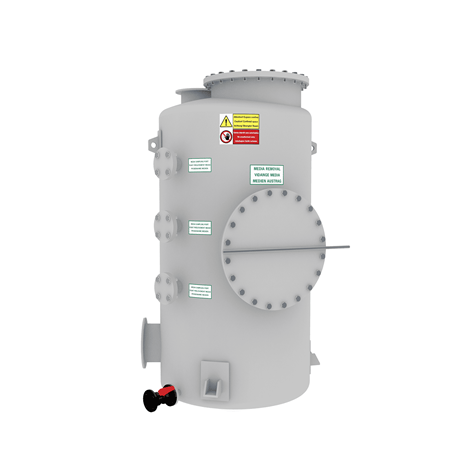

Cylindrical deep bed made of non-corrosive fiberglass and resin offering superior cost-effective molecular scrubbers for heavy-duty applications. Designed for vertical airflow with single and dual bed configuration filled with ISO 10121 activated carbon and CamPure media. HDB-C can be used in either supply air or exhaust air, ideal for wastewater treatment applications and emergency scrubbers

  • Corrosion free
  • Wide range of airflow: 500 - 30 000 m3/h
  • Compact footprint and optimum pressure drop with single bed and dual bed design
  • Highly reliable performance with 900 mm media bed depth and leak free design
  • Predicted removal efficiency and lifetime by Camfil's proprietary software
  • ICON6 Molecular
  • ICON16 Large air volume
  • ICON37 ISO10121

Specifications

Application
Corrosion control, odour removal, emergency scrubbers.
Filter Frame
Polyester resin reinforced in fiberglass
Media
Activated Carbon, Impregnated Activated Alumina
Max temperature (°C)
50
Max Airflow
30 000 m³/h
