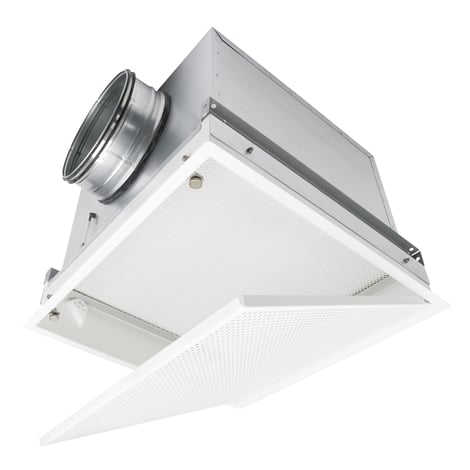

CamSeal

  • Simplified filter maintenance : no tools needed
  • Control ports from room side
  • Interchangeable grids
  • Available with top- or side entry
  • ICON24 magicad
Item Type Filter Class EN1822 Width (mm) Height (mm) Depth (mm) AirFlow (m3/h) @ 0,45m/s Pressure drop (Pa) @ 0,45 m/s
CSL-4W-3P3 347 347 35
CSL-4W-5P5 549 549 35
CSL-SW-3P3 346 346 20
CSL-SW-5P5 549 549 20
CSL-PF-3P3 346 346 16
CSL-PF-5P5 549 549 16
MG10 HFC HD-2G / 3P3 E10 300 300 104 500 250
MG10 HFC HD-2G / 5P5 E10 503 503 104 1500 250
MG14 HFC HD-2G / 3P3 H14 300 300 104 490 250
MG14 HFC HD-2G / 5P5 H14 503 503 104 1370 250
CSL-3P3-LS-C160 392 392 362
CSL-3P3-LS-C160D 392 392 362
CSL-5P5-LS-C250 595 595 452
CSL-5P5-LS-C250D 595 595 452
CSL-3P3-TS-C160 392 392 270
CSL-5P5-TS-C250 595 595 270

Specifications

Application
Turbulent airflow clean rooms and hospitals
Comment
Filter: HEPA filter like Megalam H14 with PU gasket
Mounting of filters: With integrated clamping device
Measurement port: For leakage- and pressure drop measurement, accessible from room side
Connections: Circular top (TS) or side (LS) entry
Air diffusers: To be ordered separately, see relevant product page for more information.
Available as swirl- (SW), perforated- (PF), adjustable vanes- (AV) and four way-(4W) grid diffusers, painted in RAL 9010. The diffusers are hinged and provided with magnetic studs.
Option: Integrated damper (D), adjustable from room side.
