Achieving high reliability and availability compression systems for LNG export sites.
With the development of shale gas and the high gas prices overseas, LNG export projects are multiplying in North America. A large majority are planning to use gas turbines to power their compression trains and as such, require an air inlet filtration system. Standard filtration systems do not always take into consideration the specific needs of LNG sites. Mainly located in coastal and industrial locations, they have to support the double burden of salt laden air and high dust load from their neighbouring industrial activities. LNG export requires continuous production, and as such, reliability and availability are highly critical.
One company realized the challenges they were facing and decided to invest early on to ensure they limit potential operating issues. Their future LNG plant will be located on the coast of the Gulf of Mexico, in an industrial area with high particulate matter.
Camfil proposed a step-by-step evaluation. Air sampling was first performed to analyse the size and concentration of the dust. After that, multiple life-cycle cost analyses were performed to identify an optimised inlet configuration.
A life-cycle cost analysis is an in-depth computer generated analysis of all the variables relevant to the filtration system choice: the environment, the pollutants in the air, the turbine model, the airflow, the heat rate, the cost of fuel, the average value of each MW produced, the cost of lost production due to downtime for compressor wash, filter change or maintenance schedule, system and filter pressure drop cost, the filter disposal cost, how fouling or pressure drop affects power out as well as CAPEX consideration.
The software simulation helped narrow the selection down to a 3-stage system with a final E12 (T12) stage. Selecting the right efficiency was just the start. Efficiency is a laboratory measurement done under dry controlled conditions. However, power plants are not located in laboratories. Actual site conditions and particle types vary widely and actual filter construction also influences performance.

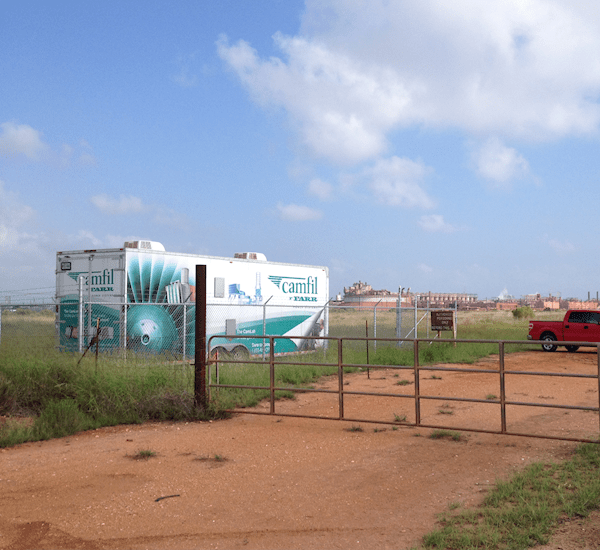

To finalize selection, it was decided to bring a CamLab - an onsite testing trailer - on the future site to monitor the performance of the different recommended filtration options during 3 months of operation.
The Camlab test ran 4 filter combinations side-by-side:
Camfil's recommendation was based on the LCC analyses and a successful LNG installation in Trinidad and Tobago - 26 units running for more than 4 years with no signs of power degradation (i.e. no improvement recorded after the washes that are performed based on the OEM recommended maintenance schedule).
The conditions at the site were hot and humid, with average dust mass
concentrations of 30-40 µg/m³, and spikes as high as 120 µg/m³.
| Standard A M6-F91 |
Standard B F7-E10 |
Camfil F9-E12 (T9-T12) 3V 6002 |
Camfil M6-F9-E12 (T6-T9-T12) 4V 300 |
|
|---|---|---|---|---|
| Average efficiency on 0.4 µm | 85.71% | 99.01% | 99.99% | 99.99% |
| Initial final filter dP (" w.g.) | 0.65 | 0.90 | 0.70 | 1.40 |
| Final filter dP - 3 months ("w.g.) | 0.66 | 0.95 | 0.79 | 1.42 |
| Life Cycle Cost Estimation (20 years, incl. CAPEX) | 30M USD | 14M USD | 11M USD | 13M USD |
The CamLab‘s first test confirmed the harshness of the environment. 100% humidity days were frequent, and spikes in dust concentration were as high as 120 μg/m3, with a majority under a micron in size. To compare, 90% of US sites never see concentrations higher than 100 μg/m3. The 3-month test confirmed the superior efficiency of the two systems with the final E12 (T12) filter (99.99% efficiency vs. 85.7% means 1400 times less particle penetration1).
With availability in mind and assuming the site would change pre-filters while online, the second factor to consider was the pressure drop increase on the final filter and what it meant for filter life. The pressure drop increase, on the Standard A solution as well as the 3-stage E12 (T12), were minimal despite the lower efficiency for the standard system that let small particles pass through the final filter. The test showed the 3-stage E12 (T12) design had a lower pressure drop rise of the final filter from contaminant loading, as compared to the 2-stage F9 system (0.02" w.g. compared to 0.09" w.g.).
Final selection was made for the 3-stage system, but with the extended 24" depth CamGT 3V-600 as the final filter. Thanks to its lower initial pressure drop and larger media area leading to a longer life, expectations are that in baseload operations, the final 24" deep T12 filters would last even longer than the 5 years life of the 12" depth.
The small CAPEX increase for a 3-stage system with EPA grade final filter has proven its value in terms of performance during testing as well as in the field.
| Total run time | 3 months / 1278 hours |
| Median relative humidity (RH) | 96% |
| Median temperature | 83 °F (28.3 °C) |
| Average dust concentration (µg/m³) | 30-40 |
| Peak dust concentration (µg/m³) | 120 |
Filter efficiencies per En779:2012 and ISO 29461-1:2021
The extended 3V-600 has twice the depth as the 4V-300 12" compact filter, thus offering a lower pressure drop at the same efficiency. LCC estimation with 3-stages and final filter 24" depth: 12M USD
1 Penetration rate of 0.01% versus 14.3%
