Hepa filter factory test standard
EN1822:2019 & ISO 29463

En 1822 and iso 29463 hepa filter factory test

Created Thursday 11 March 2021

Not all HEPA filters are created equal. Only by using the EN1822:2019 and ISO 29463 test standards can end users really identify whether a HEPA filter has been manufactured and designed to fit the clean air requirements of their workplace. The EN1822 standard has had many iterations dating back to its original inception in the 1990s. In the latest iteration of this standard, the test procedure for ISO 29463 has been included to ensure global acceptance of the test. Whether the HEPA filter is used for controlled environments like cleanrooms or as part of a system upgrade in a HVAC system or in a standalone air cleaner, you should always check that the filter has been individually certified to these standards.

Download

Understanding your HEPA filter

Download

How hepa filters are tested

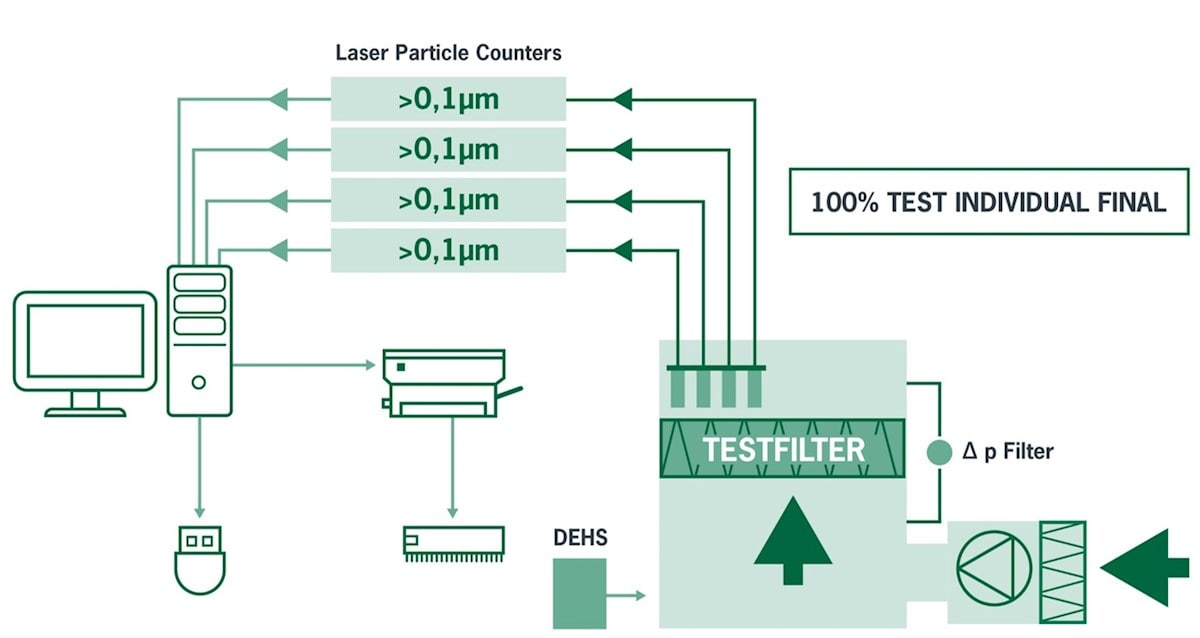

A HEPA filter is defined by its effectiveness at removing airborne contaminants from the air stream. EN1822:2019 is a factory test that helps to guarantee that the filter meets the removal efficiency needed. During factory tests of the HEPA filter, a test aerosol is used to measure the levels of airborne particulates that bypass the filter. Each HEPA filter is measured against the MPPS (most penetrating particle size) to ensure its effectiveness against even the smallest airborne contaminants. The MPPS of a filter ranges from 0.1 to- 0.2 microns. This means that when a HEPA filter is rated H14, it is 99.995% effective against the MPPS. When measured against other particulate ranges, it is often much more effective. At Camfil, we scan-test 100% of our HEPA filters utilising our lab capabilities.
Learn more about our lab services

Understanding efficiencies and certificates

Megalam - panel hepa filter
The Megalam range of terminal HEPA filters is designed for laminar flow and turbulent airflows. These types of HEPA filters are often used in cleanroom ceilings, downflow booths and other applications that need a controlled airflow with low particulate penetration
Learn more
Absolute v - compact hepa filter
HEPA filter for supply- or exhaust air systems that require a very high airflow and low pressure drop. Available in both plastic and metal frames these HEPA filters are often installed in air handling units where added protection is needed.
Learn more
D-pyro - high temperature hepa filter
HEPA H14 filter for very high temperature applications (e.g. depyrogenation tunnels) up to 350ºC, . Specific stainless steel frame and stainless steel separators give highest stability. Ready for use without tempering.
Learn more
City m - air purfication systems

Standalone HEPA air purification systems require 100% factory tests on their installed filters, just like other HEPA filters. These systems are usually put inside rooms and facilities where added protection is needed. They are used to supplement HVAC systems and remove airborne contaminants

Learn more
