filter media for dust collectors

selecting the right filter media for your industrial applications

Created Wednesday 23 August 2023

Dust collection systems are an important part of any manufacturing process, so they need to be sized and designed properly. One critical design component is specifying the proper filtration media, which requires analysis of the dust in the process and all operating conditions.

Your dust collector is only as strong as its filter cartridges, which makes filter selection vital. Filter elements need to use the type of media that is appropriate for your specific application and dust. For example, your application may require media treated with coatings that promote dust release, flame retardance or conductivity.

Using the wrong media can put workers at risk or cause high pressure drop and energy costs. Inefficient filtration also can lead to dust deposits creating a risk in event of an explosion. Using the correct media creates a safer, cleaner work environment with less dust collector maintenance.

Five factors you should take into consideration about your dust and process:

  1. Particle characteristics
  2. Particle size
  3. Combustibility & static electricity
  4. Moisture level
  5. Operating temperature

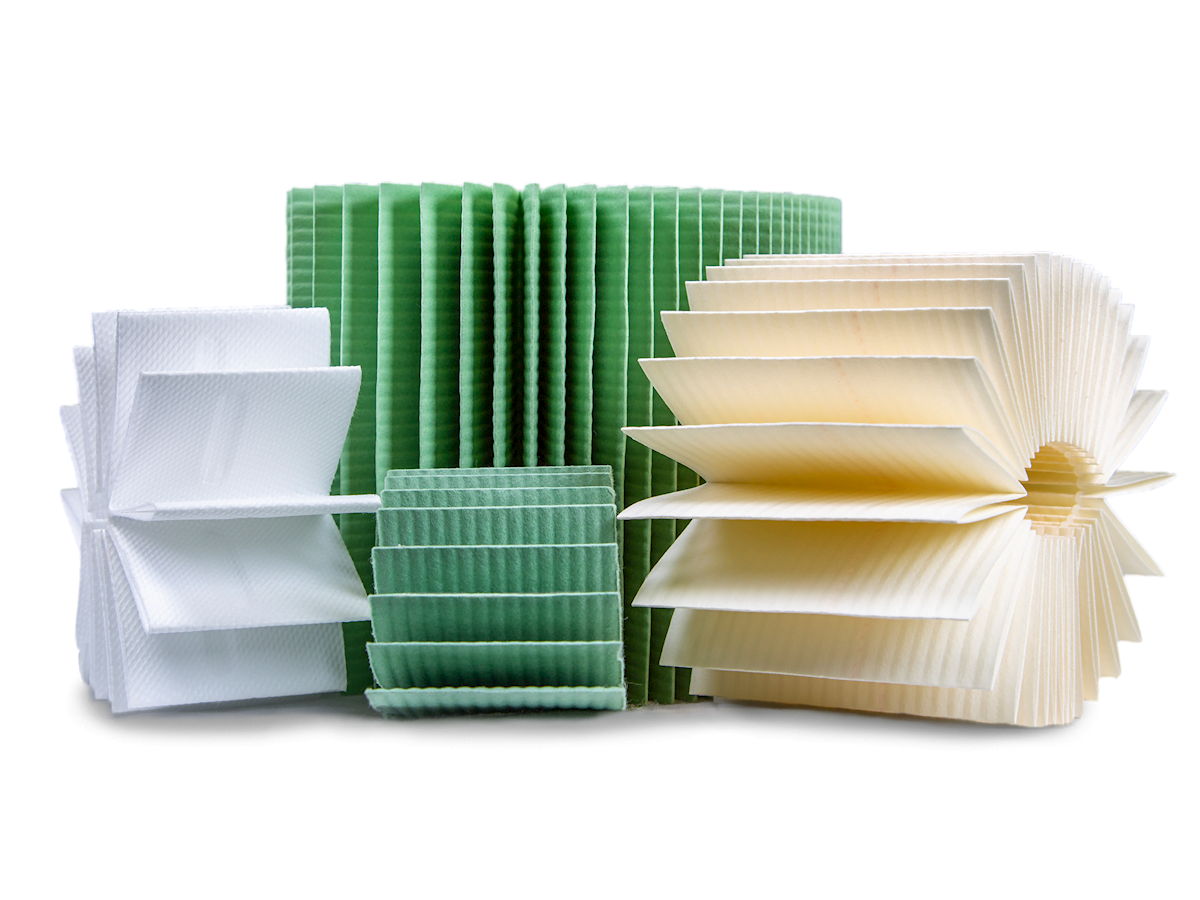

filter media types

Cellulose/Paper and Spunbond/Synthetic are the two basic filter media types most commonly used for our filter elements.

The base material of Camfil´s standard filter elements is a proprietary fibre blend of cellulose and paper, what maximises dust holding capacity and promote dust release when pulse cleaned. Camfil´s medias are developed to provide the lowest pressure drop, longest service life and highest filtration efficiencies. The media can be treated to provide different properties which allows the handling of various dust types from different industrial processes.

Camfil´s Dura-Pleat filter media is made of 100% spunbonded polyester in a pleated design that combines the best of both worlds: the high efficiency of pleated media and the versatility of synthetic materials. Filter cartridges with Dura-Pleat technology capture and release more pollutants when pulse-cleaned, resulting in a safer, cleaner work environment with less maintenance and provide lowest pressure drop. The base polyester media is treated to provide various properties such as anti-static, oil & water repellent or to handle sticky dusts.

cellulose/paper

Proprietary blend of cellulose fibres and polyester fibers for optimum dust release characteristics yielding long service life at high filtration efficiencies (colour: green). This media is used where dust is not explosive. We construct this media into our range of HemiPleat green filters.

Types of dust & fume (non explosive):

  • Cotton
  • Fibreglass
  • Paper
  • Sand incl. foundry sand
  • Stone & ceramic
  • Talc
  • Wood

Typcial applications:

  • Blasting
  • Grinding
  • Planing
  • Sanding
  • Shredding

Industries:

  • Ceramic & natural stone
  • Metalworking
  • Recycling
  • Woodworking

Proprietary blend of cellulose and polyester fibres, additionally treated with flame retardant properties. This media is used where dust is typically not explosive but in processes where sparks might be generated (colour: white). We construct this media into our range of HemiPleat flame retardant filters.

Types of dust & fume:

  • Iron oxids
  • Laser & plasma cutting fumes
  • Soldering fumes
  • Thermal spray powders
  • Welding fumes

Typical applications:

  • Blasting
  • Grinding
  • Laser cutting
  • Plasma cutting
  • Soldering
  • Thermal spray
  • Welding

Industries:

  • Metalworking

Proprietary blend of cellulose and polyester fibres, treated with flame retardant properties and addtionally impregnated with carbon fibres for static dissipation (colour: black). Due to the antistatic properties this media is selected when working with potentially explosive dusts. We use this media to construct our HemiPleat FR carbon range of filters.

Types of dust & fume:

  • Flour
  • Fumed silica
  • Paint pigments
  • Pharmaceutical powders
  • Plastic
  • Sugar
  • Thermal spray powders
  • Toner & carbon black

Typical applications:

  • Blasting
  • Bulk & powder handling
  • Mixing
  • Packaging
  • Powder paint coating
  • Thermal spray
  • Weighing

Industries:

  • Chemical
  • Food & beverage
  • Pharmaceutical
  • Metalworking

Standard Green + surface layer of nanofibre to yield the market’s most superior filtration and cleanability (colour: white/green). This media is used where dust is not explosive. We construct this media into our range of HemiPleat eXtreme green filters. The nanofibre layer helps to increase efficiency and the media is certified to dust class "M" in accordance to EN 60335-2-69. This media can help to reduce your emissions where that it is critical to your process.

Types of dust & fume (non explosive):

  • Copper
  • Cotton
  • Fibreglass
  • Paper
  • Sand incl. foundry sand
  • Stone & ceramic
  • Talc
  • Wood

Typcial applications:

  • Blasting
  • Bulk handling of powders
  • Crushing
  • Grinding
  • Planing
  • Sanding
  • Shredding

Industries:

  • Ceramic & natural stone
  • Chemical
  • Food & beverage
  • Metalworking
  • Mining
  • Recycling
  • Woodworking

Blend of cellulose and polyester fibres with a surface layer of nanofibres, additionally treated with flame retardant properties. This media is used where dust is typically not explosive but in processes where sparks might be generated (colour: white). The nanofibre layer helps to increase efficiency and the media is certified to dust class "M" in accordance to EN 60335-2-69. This media can help to reduce your emissions where that it is critical to your process. We use this media to construct our HemiPleat eXtreme flame retardant range of filters.

Types of dust & fume:

  • Iron oxides
  • Laser & plasma cutting fumes
  • Soldering fumes
  • Steel
  • Thermal spray powders
  • Welding fumes

Typical applications:

  • Blasting
  • Grinding
  • HVOF
  • Laser cutting
  • Plasma cutting
  • Soldering
  • Thermal spray
  • Welding
  • Wire arc

Industries:

  • Metalworking

Proprietary blend of cellulose and polyester fibres with an additional layer of nanofibres, treated with flame retardant properties and impregnated with carbon fibres for static dissipation (colour: black). Due to the antistatic properties and the nanofibre layer this media is selected when working with potentially explosive and very fine dusts. The nanofibre layer helps to increase efficiency and the media is certified to dust class "M" in accordance to EN 60335-2-69. This media can help to reduce your emissions where that it is critical to your process. We use this media to construct our HemiPleat eXtreme FR carbon range of filters.

Types of dust & fume:

  • Flour
  • Fumed silica
  • Herbicides
  • Paint pigments
  • Pharmaceutical powders
  • Plastic
  • Sugar
  • Thermal spray powders
  • Toner & carbon black

Typical applications:

  • Blasting
  • Bulk & powder handling
  • Central vacuum
  • Mixing
  • Packaging
  • Powder paint coating
  • Tablet coating
  • Thermal spray
  • Weighing

Industries:

  • Chemical
  • Food & beverage
  • Pharmaceutical
  • Metalworking

Light-weight spun bond polyester media with layer of nanofibre (colour: white). This media is used where dust is not explosive. We construct this media into our range of HemiPleat eXtreme synthetic filters. The nanofibre layer helps to increase efficiency and the media is certified to dust class "M" in accordance to EN 60335-2-69. This media can help to reduce your emissions where that it is critical to your process.

Types of dust & fume (non explosive):

  • Copper
  • Cotton
  • Fibreglass
  • Paper
  • Sand incl. foundry sand
  • Stone & ceramic
  • Talc

Typcial applications:

  • Blasting
  • Bulk handling of powders
  • Crushing
  • Land remediation
  • Shredding

Industries:

  • Ceramic & natural stone
  • Chemical
  • Metalworking
  • Recycling

spunbond/synthetic

Basic spunbonded polyester with no treatments, heavy-duty and durable media (colour: white). Dura-Pleat standard media combines the best of both worlds: the high efficiency of pleated media and the versatility of synthetic materials. Filter elements with Dura-Pleat technology capture and release more pollutants when pulse-cleaned, resulting in a safer, cleaner work environment with less maintenance and provide lowest pressure drop. The media is certified to dust class "M" in accordance to EN 60335-2-69. This media can help to reduce your emissions where it is critical to your process.

Types of dust & fume (non explosive):

  • Copper
  • Cotton
  • Fibreglass
  • Paper
  • Sand incl. foundry sand
  • Stone & ceramic
  • Talc

Typcial applications:

  • Blasting
  • Bulk handling of powders
  • Crushing
  • Cutting
  • Sanding
  • Shredding

Industries:

  • Ceramic & natural stone
  • Chemical
  • Food & beverage
  • Metalworking
  • Recycling

Our basic spunbonded polyester Dura-Pleat media coated with an oil and water repellent finish (colour: white).

Types of dust & fume (non explosive):

  • Cement
  • Food powders (hydrophobic)
  • Pharmaceutical dust
  • Sand incl. foundry sand
  • Welding fumes (oily)

Typcial applications:

  • Blasting
  • Casting
  • Coating
  • Mixing
  • Silo venting
  • Weighing
  • Welding

Industries:

  • Construction aggregates
  • Food & beverage
  • Metalworking
  • Pharmaceutical

The basis of this media is again our spunbonded polyester Dura-Pleat, applied with a conductive aluminised surface finish for static dissipation (colour: silver/white). Due to the antistatic properties this media is selected when working with potentially explosive and very fine dusts. The media is certified to dust class "M" in accordance to EN 60335-2-69 and can help to reduce the emissions where that it is critical to your process. We use this media to construct our range of Dura-Pleat DPA range of filter elements.

Types of dust & fume:

  • Flour
  • Food flavourings & spices
  • Paint pigments
  • Paper
  • Pharmaceutical powders
  • Plastic
  • Seeds
  • Sugar
  • Toner & carbon black
  • Wood

Typical applications:

  • Blasting
  • Bulk & powder handling
  • Central vacuum
  • Mixing
  • Packaging
  • Powder paint coating
  • Silo venting
  • Tablet coating
  • Weighing

Industries:

  • Chemical
  • Food & beverage
  • Metalworking
  • Pharmaceutical
  • Woodworking

Dura-Pleat spunbonded polyester media with a laminated PTFE membrane for very high efficiencies of fine particulate and superior dust cake release (colour: white). Due to the PTFE membrane surface layer this media is selected when working with sticky or very fine dusts or fumes (not to be used when there is oil content in the dirty air). The media is certified to dust class "M" in accordance to EN 60335-2-69 and can help to reduce the emissions where it is critical to your process. We use this media to construct our range of Dura-Pleat DPT range of filter elements.

Types of dust & fume:

  • Food dusts
  • Laser & plasma cutting fumes
  • Pharmaceutical dusts
  • Sticky dusts
  • Welding fumes (dry)

Typical applications:

  • Laser cutting
  • Mixing
  • Plasma cutting
  • Silo venting
  • Tablet coating
  • Welding

Industries:

  • Chemical
  • Food & beverage
  • Metalworking
  • Pharmaceutical

Spundbonded polyester media with a very smooth PTFE membrane laminated onto the surface. The carbon impregnation ensures antistatic properties when working with potentially explosive dusts (colour: grey/black). Due to the PTFE membrane surface layer this media is selected when working with sticky or very fine dusts or fumes (not to be used when there is oil content in the dirty air). The media is certified to dust class "M" in accordance to EN 60335-2-69 and can help to reduce the emissions where it is critical to your process. We use this media to construct our range of Dura-Pleat DPTC range of filter elements.

Types of dust & fume:

  • Food dusts
  • Pharmaceutical dusts
  • Sticky dusts
  • Tobacco
  • Toner & carbon black

Typical applications:

  • Compression
  • Mixing
  • Packaging
  • Silo venting
  • Spray drying
  • Tablet coating
  • Weighing

Industries:

  • Chemical
  • Food & beverage
  • Pharmaceutical

Dura-Pleat spunbonded polyester media which combines an aluminium coating together with oil and moisture repellent properties (colour: white/silver). Due to the antistatic properties this media is selected when working with potentially explosive and very fine or sticky dusts. The media is certified to dust class "M" in accordance to EN 60335-2-69 and can help to reduce the emissions where that it is critical to your process. We use this media to construct our range of Dura-Pleat DPOA range of filter elements.

Types of dust & fume:

  • Food flavourings & spices
  • Paint pigments
  • Pharmaceutical powders
  • Plastic
  • Seeds
  • Toner & carbon black

Typical applications:

  • Bulk & powder handling
  • Central vacuum
  • Mixing
  • Packaging
  • Powder paint coating
  • Silo venting
  • Tablet coating
  • Weighing

Industries:

  • Chemical
  • Food & beverage
  • Metalworking
  • Pharmaceutical

Spundbonded polyester media with a very smooth PTFE membrane laminated onto the surface and an aluminium coating for static disipation when working with potentially explosive dusts (not good for oil contaminated air / colour: white/silver). The media is certified to dust class "M" in accordance to EN 60335-2-69 and can help to reduce the emissions where it is critical to your process. We use this media to construct our range of Dura-Pleat DPTA range of filter elements.

Types of dust & fume:

  • Food dusts
  • Pharmaceutical dusts
  • Sticky dusts
  • Tobacco
  • Toner & carbon black

Typical applications:

  • Compression
  • Mixing
  • Packaging
  • Silo venting
  • Spray drying
  • Tablet coating
  • Weighing

Industries:

  • Chemical
  • Food & beverage
  • Pharmaceutical

european dust filter standard

Cartridge filters for dust and fume extraction equipment are required to meet the relevant Standard EN 60335-2-69 to the latest revision. Camfil Hemipleat Extreme and Dura-Pleat media types are all tested independently in accordance with the standard to Dust class “M”. This means they are 99.9% efficient tested with particles between 0.2 and 2 microns.

Both filter media are available for own brand and retrofit filters

optimise the performance of your dust extraction system

This eBook outlines five factors you should take into consideration about your dust and your process when determining the right filter media.
