CamGT filters are engineered to excel in extreme environments where your turbomachinery are threatened by high humidity, salt-laden air and heavy pollution or particulates. They are optimized for EPA efficiency and hydrophobicity to virtually eliminate fouling, corrosion and maintenance downtime, all at a lower and stable pressure drop.
Optimized for EPA efficiency, the CamGT filters are the best performing on the market. Degradation issues are virtually eliminated, keeping your engine in pristine condition.
Despite the high efficiency grade, pressure drop remains at a low and stable value, even in extreme conditions.
Advanced hydrophobic media and our patent pending double sealed construction eliminates water bypass and dissolved salts from entering your gas turbine. Fouling and corrosion are therefore no longer a risk, eliminating the risk of unplanned downtime for engine maintenance.
Low and stable pressure drop reduces the risks of spikes and the need to replace filters, allowing you to align your change-out with your annual outage schedule.
Reduced operating expenses can significantly impact your bottom line, and is a is a result of lower degradation, lower maintenance requirements, and lower pressure drop. In addition, you can substantially lower your fuel consumption and improve your profits from producing lower CO2 emissions per MWh.The CamGT filters are carefully designed to deliver the lowest total cost of ownership.
The CamGT 3V-600, with its extended depth and media area, is the ultimate high performance GT filter. It packs in all the high performance features of the line:
The extended depth and optimized geometry and media area delivers the longest life at the lowest and most stable pressure drop on the market - maximazing profitability with every MWhr produced.
Our CamGT lines includes 2 additional sizes, 440mm (17") depth and 300mm (12") depth.
The filters includes all the high performance features of the line:
The new and improved filter geometry reduces the construction pressure drop even further.
This level of protection prevents pressure spikes and unplanned downtime from offline water washes. It also prevents hot corrosion that increases heat rate and robs your engines of power. And with a longer filter life, you can plan your filter changes to match up with regular maintenance intervals. And the depth options allows you to match your maintenance interval needs even better.

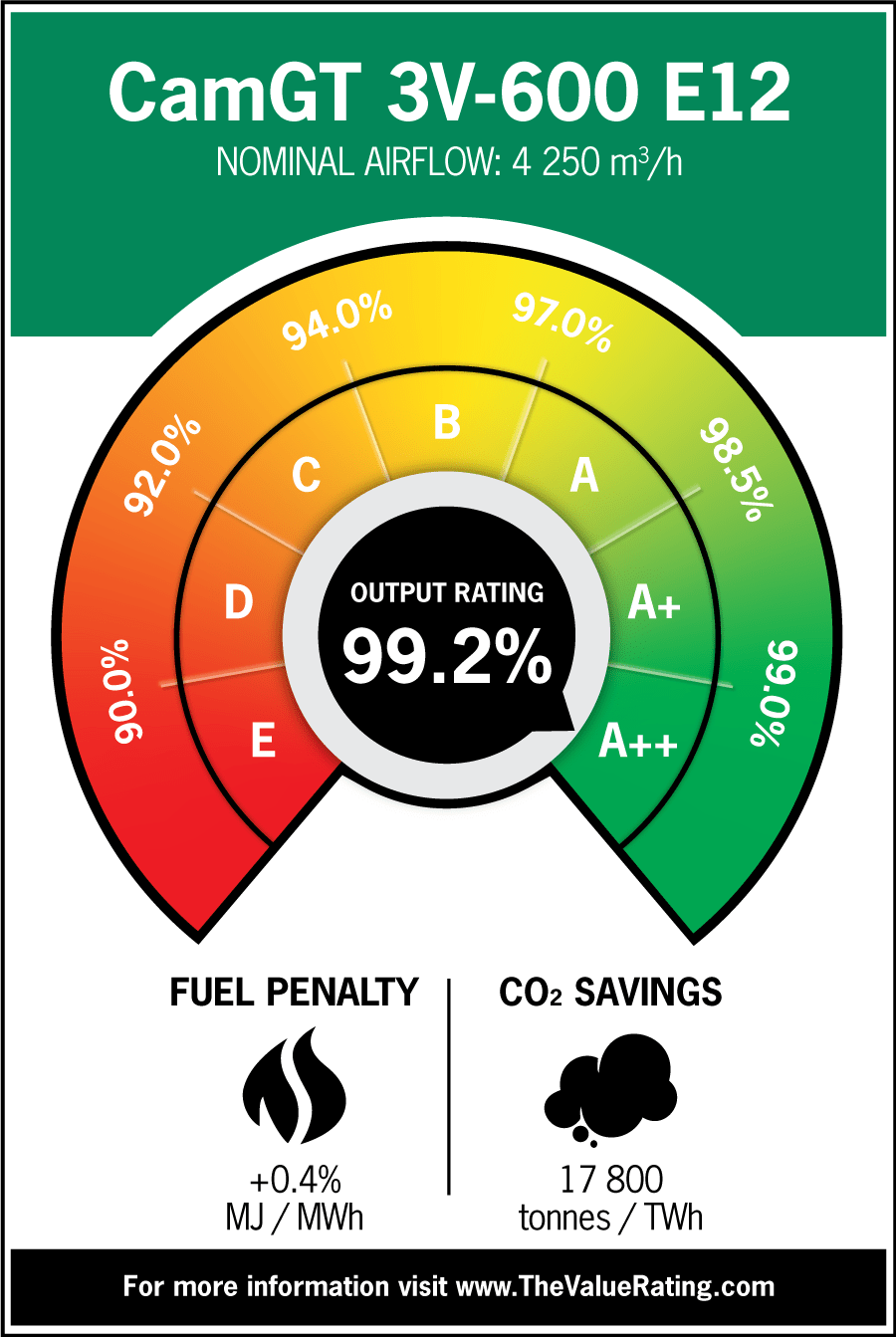

| Grade | Model | Output Rating % |
Fuel Penalty MJ / MWh |
CO2 Savings tonnes / TWh |
|---|---|---|---|---|
| A++ | CamGT 3V-600 E12 | 99.20% | 0.40% | 17 800 |
| A++ | CamGT 3V-440 E12 | 99.10% | 0.40% | 17 700 |
| A++ | CamGT 3V-600 E11 | 99.00% | 0.50% | 17 400 |
| A++ | CamGT 3V-440 E11 | 99.00% | 0.50% | 17 300 |
| A+ | CamGT 4V-300 E12 | 98.90% | 0.40% | 17 500 |
| A+ | CamGT 3V-440 E10 | 98.80% | 0.60% | 16 900 |
| A+ | CamGT 3V-600 E10 | 98.80% | 0.60% | 16 900 |
| A+ | CamGT 4V-300 E11 | 98.80% | 0.50% | 17 200 |
| A | CamGT 4V-300 E10 | 98.40% | 0.70% | 16 300 |
| B | CamGT 3V-600 F9 | 94.80% | 2.60% | 8 900 |
| B | CamGT 3V-440 F9 | 94.80% | 2.60% | 8 900 |
| B | CamGT 4V-300 F9 | 94.70% | 2.60% | 8 800 |
| C | CamGT 3V-440 F8 | 93.80% | 3.10% | 6 900 |
| C | CamGT 4V-300 F8 | 93.70% | 3.10% | 6 800 |
| C | CamGT 3V-600 F8 | 92.40% | 3.80% | 4 000 |
| C | CamGT 4V-300 F7 | 92.30% | 3.80% | 3 900 |
