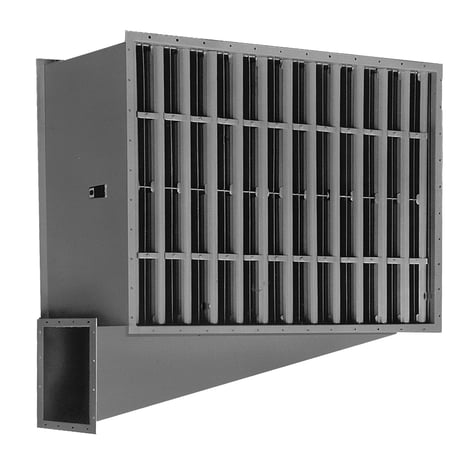

Dynavane

  • Much higher efficiency as compared to sand trap louvres
  • Much higher life for pre and bag filters resulting ROI approximately in a year
  • Tested as per ISO 5011 and efficiency of 95% Coarse dust and 78% fine dust
  • Constant pressure drop, self-cleaning
  • Modular concept and can be designed to fit in available area based upon the designed airflow

Specifications

Application
Self-cleaning inertial filter designed to handle large volume of air. Dynavane incorporates inertial separation providing high dust removal efficiency of airborne particulate matter.
Filter Frame
Stainless steel, Metal
Installation options
Construction: 11 gauge steel all welded construction, bolt on flange for HVAC system connection and bleed outlet,removable blade pack and four mesh inlet screens. Material of construction can be Mild Steel, SS304 & SS316
Comment
Face Air Velocity: 2.5 m/s – 4.5 m/s.
