Quantum Laser

The compact dust collector Quantum Laser is specifically designed to extract emissions from thermal cutting and welding applications like laser cutting, plasma cutting or laser welding. The Quantum Laser dust extraction systems include an integrated spark arrestor and additionally a separate spark discharge which ensures that coarse hot particles are collected in a separate bin to prevent the ignition of flammable fine dust particles and to reduce fire hazards from the extraction system. The optimized filter design together with the dual pulse cleaning system ensures best separation efficiency especially with fine laser dust.

  • Integrated spark arrestor with separate spark discharge.
  • Dual pulse cleaning technology
  • Efficient PTFE filter cartridges
  • Integrated, sound-insulated fan
  • Integrated control system
  • Three sizes – small footprint
  • Air volume from 1,500 m³/h up to 5,500 m³/h (900 - 3,200 cfm)
  • Plug & play

Specifications

Application
Laser cutting
Plasma cutting
Laser welding
Non-explosive fine dust
Installation options
- The system is available in three different sizes, handling air volumes from 1,500 m³/h up to 5,500 m³/h (900 cfm - 3,200 cfm).
- The small footprint of the dust collectors allow flexible installation close to the process what reduces costs for ductwork.
- Each model size can be configured to meet the specific challenges faced by the customer
- Plug & play
Comment
Innovative Dual-Pulse Cleaning System:
- Unique dual section design prevents accumulation of dust on top of filters
- Provides uninterrupted airflow during pulse cleaning
- Provides longer filter life
- Reduced compressed air consumption
- High efficiency PTFE filter cartridges

Documents and downloads

Related Products

Articles related to Quantum Series

APC Industrial Environment

Improving air quality inside and around manufacturing facilities

Processes in manufacturing facilities often generate dust and fumes which for example can pose health risks for your operators or compromise the quality and safety of your products. Determining the right capture and filtration solution helps to protect against the main risks of uncontrolled emissions and thus to create safe work environments.

Food and beverage Life science and healthcare Manufacturing and Machinery Dust fume and mist extraction Air quality
Filter Media Camfil APC_Promo.png

selecting the right filter media for your industrial applications

Dust collection systems are an important part of any manufacturing process, so they need to be sized and designed properly. One critical design component is specifying the proper filtration media, which requires analysis of the dust in the process and all operating conditions.

Food and beverage Life science and healthcare Manufacturing and Machinery Dust fume and mist extraction
Welding Working Powerplant

How to remove high concentration of particles in metal industry

Welding, grinding and laser/plasma cutting processes produce huge amounts of fine PM1 particles and various harmful gases that cannot be removed from the indoor air by ventilation alone.

Manufacturing and Machinery Dust fume and mist extraction Air quality

Dust collector safety features.png

Make sure your dust collection equipment is safe & compliant

Dust collection systems are all safety devices and thus state-of-the art modern methods of validation and certification are required. Furthermore it is vital to ensure that the system is still in compliance after perhaps changed process conditions, to provide maximum safety for personnel and the facility. It is also recommended to carry out quality audits, process reliability surveys and annual safety inspections.

Food and beverage Life science and healthcare Manufacturing and Machinery Dust fume and mist extraction

Monitoring dust collector performance data supports operational efficiency

Learn more on how Camfil´s GoldLink Connect remote monitoring system helped a metalworking company to significantly reduce power consumption and compressed air consumption on their dust collectors.

Food and beverage Life science and healthcare Manufacturing and Machinery Dust fume and mist extraction Case Studies

Dust Collector TCO iceberg iStock 673383742

dust collector Total Cost of Ownership

When purchasing dust collection systems and filter cartridges, the initial purchase price is just the tip of the iceberg. The true costs – energy, consumables and operations – are lurking below the surface. The good news is that there are ways to reduce these costs over the long term.

Food and beverage Life science and healthcare Manufacturing and Machinery Dust fume and mist extraction Innovation Technology and Research

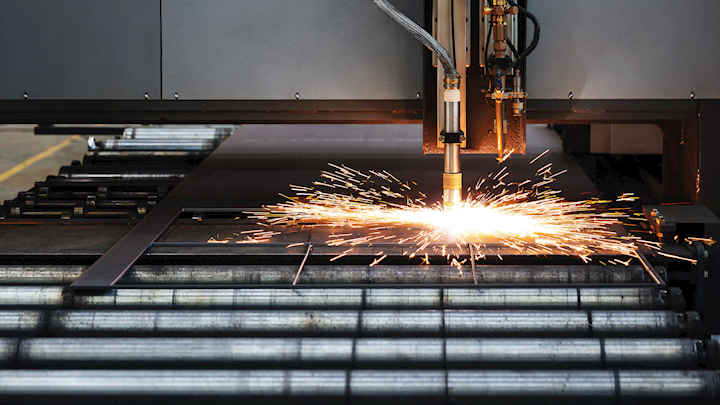

Plasma Cutting AdobeStock 81087931
